Lenkkopflager Kegelrollenlager für SUZUKI AN, DR, GN, GR,

Lenkkopflager Kegelrollenlager für SUZUKI AN, DR, GN, GR,

Artikelnummer: 22-1004-SUZUKI
HAN: 22-1004-SUZUKI
Kategorie: Suzuki
Hersteller: Götz

Lenkkopflager Kegelrollenlager für SUZUKI AN, DR, GN, GR, GS

31,29 €

inkl. 19% USt. , zzgl.

Unverbindliche Preisempfehlung des Herstellers: 46,94 €

(Sie sparen 33.34%, also 15,65 €)

Knapper Lagerbestand
Lieferzeit: 2 - 3 Werktage Deutschland

Set

Beschreibung

Hochwertiger Kegelrollenlagersatz ersetzt die einfachen schwachen Original Lenkkopflager.

Wird einfach anstelle der schwachen Original Lenkkopflager ohne Abänderungen ausgetauscht.

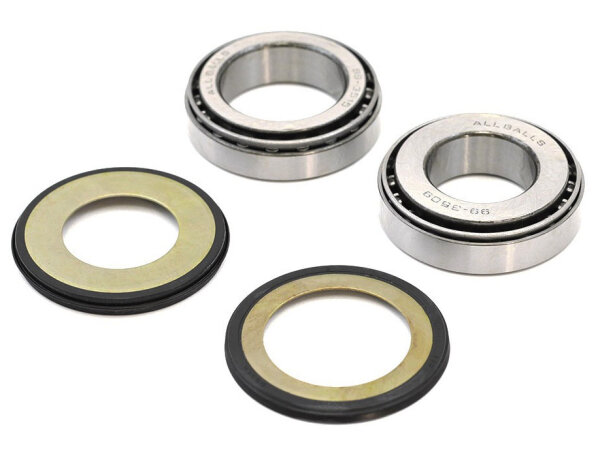

Komplettes Lenkkopflager Set wie abgebildet sofort Montagefertig.

Maße:

Außen-Ø:	47 mm
Innen-Ø:	25 mm
Höhe h1:	15 mm
Außen-Ø:	55 mm
Innen-Ø:	30 mm
Höhe h2:	17 mm

Passend für folgende Modelle:

Modell	Bj. Code	Typ	Rahmen-Nr.		Baujahr	Zylinder	Leistung [PS / kW]
AN 250 Burgman	Y	AN1111	AN1111-00114067	AN1111-00115148	2000	1
	W	AN1211	AN1211-00100001	AN1211-00101203	1998	1	23 / 17
	X	AN1211	AN1211-00101204	AN1211-00102138	1999	1	23 / 17
	K3	BV1111	BV1111-00100001	BV1111-00100375	2003	1
	K4	BV1111	BV1111-00100376	BV1111-00102029	2004	1
	K5	BV1111	BV1111-00102030	BV1111-00103993	2005	1
	K6	BV1111	BV1111-00103994	-	2006	1
	K1	WVAN1111	AN1111-00115149	AN1111-00121468	2001	1
	K2	WVAN1111	AN1111-00121469	-	2002	1
AN 400 Burgman	X	AU1211	AU1211-00100001	AU1211-00102916	1999	1	33 / 24
	Y	AU1211	AU1211-00102917	AU1211-00106274	2000	1	33 / 24
	L2	CG1111	CG1111-00142973	-	2012	1	34 / 25
	L3	CG1111	CG1111-00142973	CG1111-00144733	2013	1	34 / 25
	L4	CG1111	CG1111-00144734	CG1111-00145268	2014	1	34 / 25
	L5	CG1111	CG1111-00145269	CG1111-00199999	2015	1	34 / 25
	L6	CG1111	CG1111-G0100001	-	2016	1	34 / 25
	K1	WVAU1111	AU1111-00121103	AU1111-00141500	2001	1	33 / 24
	K2	WVAU1111	AU1111-00141501	-	2002	1	33 / 24
	K3	WVBW1111	BW1111-00100001	BW1111-00110689	2003	1	33 / 24
	K4	WVBW1111	BW1111-00110690	BW1111-00125818	2004	1	33 / 24
	K5	WVBW1111	BW1111-00125819	BW1111-00134173	2005	1	33 / 24
	K6	WVBW1111	BW1111-00134174	-	2006	1	33 / 24
AN 400 S Burgman	K5	WVBW1121	BW1121-00100001	BW1121-00101248	2005	1	33 / 24
	K6	WVBW1121	BW1121-00101249	-	2006	1	33 / 24
AN 400 Burgman	K7	WVCG1111	CG1111-00100001	CG1111-00123432	2007	1	34 / 25
	K8	WVCG1111	CG1111-00123433	CG1111-00135960	2008	1	34 / 25
	K9	WVCG1111	CG1111-00135961	CG1111-00138821	2009	1	34 / 25
	L0	WVCG1111	CG1111-00138822	CG1111-00141713	2010	1	34 / 25
	L1	WVCG1111	CG1111-00141714	CG1111-00142972	2011	1	34 / 25
AN 400 Z Burgman	K7	WVCG1121	CG1121-00100001	CG1121-00101407	2007	1	34 / 25
	K8	WVCG1121	CG1121-00101408	-	2008	1	34 / 25
AN 400 A Burgman ABS	K9	WVCG1131	CG1131-00100001	CG1131-00100671	2009	1	34 / 25
	L0	WVCG1131	CG1131-00100672	CG1131-00102688	2010	1	34 / 25
	L1	WVCG1131	CG1131-00102689	CG1131-00104204	2011	1	34 / 25
	L2	WVCG1131	CG1131-00104205	CG1131-00104804	2012	1	33 / 24
	L3	WVCG1131	CG1131-00104805	CG1131-00105512	2013	1	33 / 24
	L4	WVCG1131	CG1131-00105513	CG1131-00106251	2014	1	33 / 24
	L5	WVCG1131	CG1131-00106252	CG1131-00199999	2015	1	33 / 24
	L6	WVCG1131	CG1131-G0100001	-	2016	1	33 / 24
AN 400 ZA Burgman ABS	K9	WVCG1141	CG1141-00100001	CG1141-00100729	2009	1	34 / 25
	L0	WVCG1141	CG1141-00100730	CG1141-00101908	2010	1	34 / 25
	L1	WVCG1141	CG1141-00101909	CG1141-00102213	2011	1	34 / 25
	L2	WVCG1141	CG1141-00102214	CG1141-00102855	2012	1	33 / 24
	L3	WVCG1141	CG1141-00102856	CG1141-00103133	2013	1	33 / 24
	L4	WVCG1141	CG1141-00103134	CG1141-00103472	2014	1	33 / 24
	L5	WVCG1141	CG1141-00103473	CG1141-00199999	2015	1	33 / 24
	L6	WVCG1141	CG1141-G0100001	-	2016	1	33 / 24
AN 400 A Burgman ABS Euro3	L6	WVCG1131	CG1131-G0100001	-	2017	1	33 / 24
AN 400 A Burgman ABS Euro4	L8	DU11AZ	DU11AZ-J2100001	-	2017	1	31 / 23
	L8	DU11AZ	DU11AZ-J2100001	-	2018	1	31 / 23
AN 650 Burgman	K3	WVBU1111	BU1111-00100001	BU1111-00110495	2002	2	50 / 37
	K3	WVBU1111	BU1111-00100001	BU1111-00110495	2003	2	50 / 37
	K4	WVBU1111	BU1111-00110496	BU1111-00113618	2004	2	56 / 41
	K5	WVBU1111	BU1111-00113619	BU1111-00113704	2005	2	56 / 41
	K6	WVBU1111	BU1111-00113705	BU1111-00114139	2006	2	56 / 41
	K7	WVBU1111	BU1111-00114140	BU1111-00114831	2007	2	56 / 41
	K8	WVBU1111	BU1111-00114832	BU1111-00115219	2008	2	56 / 41
	K9	WVBU1111	BU1111-00115220	BU1111-00115723	2009	2	56 / 41
	L0	WVBU1111	BU1111-00115724	BU1111-00115803	2010	2	56 / 41
	L1	WVBU1111	BU1111-00115804	BU1111-00115828	2011	2	56 / 41
AN 650 Burgman ABS	L3	WVBU1111	BU1111-00115829	BU1111-00116931	2013	2	56/48 PS / 41/35 kW
	L4	WVBU1111	-	-	2014	2	56/48 PS / 41/35 kW
	L5	WVBU1111	BU1111-00116932	-	2015	2	56/48 PS / 41/35 kW
	L6	WVBU1111	BU1111-G0100001	-	2016	2	56/48 PS / 41/35 kW
AN 650 L Burgman Executive	K3	WVBU1114	BU1114-00100001	-	2003	2	56 / 41
AN 650 Z Burgman Executive ABS	L3	WVBU1121	BU1121-00100031	BU1121-00106168	2013	2	56/48 PS / 41/35 kW
	L4	WVBU1121	-	-	2014	2	56/48 PS / 41/35 kW
	L5	WVBU1121	BU1121-00106169	-	2015	2	56/48 PS / 41/35 kW
	L6	WVBU1121	BU1121-G0100001	-	2016	2	56/48 PS / 41/35 kW
	L6	WVBU1121	BU1121-G0100001	-	2017	2	56/48 PS / 41/35 kw
AN 650 A Burgman Executive ABS	K4	WVBU1321	BU1321-00100001	BU1321-00105118	2004	2	56 / 41
	K5	WVBU1321	BU1321-00105119	BU1321-00110445	2005	2	56 / 41
	K6	WVBU1321	BU1321-00110454	BU1321-00117024	2006	2	56 / 41
	K7	WVBU1321	BU1321-00117025	BU1321-00122999	2007	2	56 / 41
	K8	WVBU1321	BU1321-00123000	BU1321-00129694	2008	2	56 / 41
	K9	WVBU1321	BU1321-00129695	BU1321-00133404	2009	2	56 / 41
	L0	WVBU1321	BU1321-00133405	BU1321-00136754	2010	2	56 / 41
	L1	WVBU1321	BU1321-00136755	BU1321-00139747	2011	2	56 / 41
	L2	WVBU1321	BU1321-00139748	-	2012	2	56 / 41
AN 650 Z Burgman Executive ABS	L8	WVBU1427	BU1427-J0100001	BU1427-J0199999	2018	2	54 / 40
	L8	WVBU1427	BU1427-J0100001	BU1427-J0199999	2019	2	54 / 40
	L8	WVBU1427	BU1427-J0100001	BU1427-J0199999	2020	2	54 / 40
	L8	WVBU1427	BU1427-J0100001	BU1427-J0199999	2021	2	54 / 40
DL 250 A V-Strom ABS	L8	DS12AZ	DS12AZ-J1100001	DS12AZ-J1199999	2017	2	25 / 18,4
	L8	DS12AZ	DS12AZ-J1100001	DS12AZ-J1199999	2018	2	25 / 18,4
DR 125 SE	S	SF44A	SF44A-101539	SF44A-102278	1995	1	12,1 / 9
	T	SF44A	SF44A-102279	SF44A-104704	1996	1	12,1 / 9
DR 125 SE, SEU	V	SF44A	SF44A-104705	-	1997	1	12,1/11.8 PS / 8,9/8,7 kW
	W	SF44A	SF44A-000500001	SF44A-000502880	1998	1	12,1/11.8 PS / 8,9/8,7 kW
	X	SF44A	SF44A-000502881	-	1999	1	12,1/11.8 PS / 8,9/8,7 kW
	X	SF44A	SF44A-000502881	-	2000	1	12,1/11.8 PS / 8,9/8,7 kW
DR 350	L	DK41A	DK41A-100001	DK41A-100155	1990	1	33 / 24
	M	DK41A	DK41A-100156	DK41A-100513	1991	1	33 / 24
	N	DK41A	DK41A-100514	DK41A-100792	1992	1	33 / 24
	P	DK41A	DK41A-100793	DK41A-101298	1993	1	33 / 24
	R	DK41A	DK41A-101299	DK41A-101732	1994	1	33 / 24
	S	DK41A	DK41A-101733	-	1995	1	33 / 24
DR 350 S	L	SK42B	SK42B-100007	SK42B-100727	1990	1	27 / 20
	M	SK42B	SK42B-100728	SK42B-101815	1991	1	27 / 20
	N	SK42B	SK42B-101816	SK42B-103516	1992	1	27 / 20
DR 350 SH	N	SK42B	SK42B-101816	SK42B-103516	1992	1	27 / 20
DR 350 S	P	SK42B	SK42B-103517	SK42B-105595	1993	1	27 / 20
DR 350 SH	P	SK42B	SK42B-103517	SK42B-105595	1993	1	27 / 20
DR 350 S	R	SK42B	SK42B-105596	-	1994	1	30 / 22
DR 350 SE	R	SK42B	SK42B-105997	SK42B-106837	1994	1	30 / 22
DR 350 SH	R	SK42B	SK42B-105596	-	1994	1	30 / 22
DR 350 SE	S	SK42B	SK42B-106838	SK42B-107340	1995	1	30 / 22
	T	SK42B	SK42B-107341	SK42B-107863	1996	1	30 / 22
	V	SK42B	SK42B-107864	SK42B-108101	1997	1	30 / 22
	W	SK42B	SK42B-108102	-	1998	1	30 / 22
	X	SK42B	SK42B-108174	-	1999	1	30 / 22
DR 400 S	T	DR400	DR400-100001	DR400-106811	1980	1	27 / 20
	X	DR400	DR400-106812	-	1981	1	27 / 20
	X	DR500	DR500-500001	DR500-504086	1981	1	27 / 20
	Z	DR500	DR500-504087	-	1982	1	27 / 20
	Z	DR500	DR500-504087	-	1983	1	27 / 20
DR 650 RSU	L	SP42B	SP42B-100001	SP42B-101105	1990	1	27 / 20
DR 650 RS	L	SP42B	SP42B-100001	SP42B-101105	1990	1	46 / 34
DR 650 RSU	M	SP42B	SP42B-101106	-	1991	1	27 / 20
DR 650 RS	M	SP42B	SP42B-101106	-	1991	1	46 / 34
DR 650 RSEU	M	SP43B	SP43B-100001	SP43B-100904	1991	1	27 / 20
DR 650 RSE	M	SP43B	SP43B-100001	SP43B-100904	1991	1	46 / 34
DR 650 RSEU	N	SP43B	SP43B-100905	SP43B-101857	1992	1	27 / 20
DR 650 RSE	N	SP43B	SP43B-100905	SP43B-101857	1992	1	46 / 34
DR 650 RSEU	P	SP43B	SP43B-101858	SP43B-103588	1993	1	27 / 20
DR 650 RSE	P	SP43B	SP43B-101858	SP43B-103588	1993	1	46 / 34
DR 650 RSEU	R	SP43B	SP43B-103589	SP43B-104946	1994	1	34 / 25
DR 650 RSE	R	SP43B	SP43B-103589	SP43B-104946	1994	1	46 / 34
DR 650 RSEU	S	SP43B	SP43B-104947	SP43B-105568	1995	1	34 / 25
DR 650 RSE	S	SP43B	SP43B-104947	SP43B-105568	1995	1	46 / 34
DR 650 RSEU	T	SP43B	SP43B-105569	-	1996	1	34 / 25
DR 650 RSE	T	SP43B	SP43B-105569	-	1996	1	45 / 33
DR 650 RU	N	SP44B	SP44B-100001	SP44B-101523	1992	1	27 / 20
DR 650 R	N	SP44B	SP44B-100001	SP44B-101523	1992	1	45 / 33
DR 650 RU	P	SP44B	SP44B-101524	SP44B-103805	1993	1	27 / 20
DR 650 R	P	SP44B	SP44B-101524	SP44B-103805	1993	1	45 / 33
DR 650 RU	R	SP44B	SP44B-103806	-	1994	1	34 / 25
DR 650 R	R	SP44B	SP44B-103806	-	1994	1	45 / 33
DR 650 RU	R	SP44B	SP44B-103806	-	1995	1	34 / 25
DR 650 R	R	SP44B	SP44B-103806	-	1995	1	45 / 33
DR 650 REU	R	SP45B	SP45B-100001	SP45B-101314	1994	1	34 / 25
DR 650 RE	R	SP45B	SP45B-100001	SP45B-101314	1994	1	45 / 33
DR 650 REU	S	SP45B	SP45B-101315	-	1995	1	34 / 25
DR 650 RE	S	SP45B	SP45B-101315	-	1995	1	45 / 33
DR 750 SU Big	K	SR41B	SR41B-101751	-	1989	1	27 / 20
DR 750 S Big	K	SR41B	SR41B-101751	-	1989	1	50 / 37
DR 800 SU Big	L	SR42B	SR42B-100001	-	1990	1	27 / 20
DR 800 S Big	L	SR42B	SR42B-100001	-	1990	1	50 / 37
DR 800 SU Big	M	SR43B	SR43B-100001	SR43B-100876	1991	1	27 / 20
DR 800 S Big	M	SR43B	SR43B-100001	SR43B-100876	1991	1	50 / 37
DR 800 SU Big	N	SR43B	SR43B-100877	SR43B-101720	1992	1	27 / 20
DR 800 S Big	N	SR43B	SR43B-100877	SR43B-101720	1992	1	50 / 37
DR 800 SU Big	P	SR43B	SR43B-101721	SR43B-103042	1993	1	27 / 20
DR 800 S Big	P	SR43B	SR43B-101721	SR43B-103042	1993	1	50 / 37
DR 800 SU Big	R	SR43B	SR43B-103043	SR43B-104152	1994	1	34 / 25
DR 800 S Big	R	SR43B	SR43B-103043	SR43B-104152	1994	1	50 / 37
DR 800 SU Big	S	SR43B	SR43B-104153	SR43B-105520	1995	1	34 / 25
DR 800 S Big	S	SR43B	SR43B-104153	SR43B-105520	1995	1	50 / 37
DR 800 SU Big	S	SR43B	SR43B-104153	SR43B-105520	1996	1	34 / 25
DR 800 S Big	S	SR43B	SR43B-104153	SR43B-105520	1996	1	50 / 37
DR 800 SU Big	V	SR43B	SR43B-105521	-	1997	1	34 / 25
DR 800 S Big	V	SR43B	SR43B-105521	-	1997	1	50 / 37
DR 800 SU Big	V	SR43B	SR43B-105521	-	1998	1	34 / 25
DR 800 S Big	V	SR43B	SR43B-105521	-	1998	1	50 / 37
DR 800 SU Big	V	SR43B	SR43B-105521	-	1999	1	34 / 25
DR 800 S Big	V	SR43B	SR43B-105521	-	1999	1	50 / 37
GN 250	M	NJ42A	NJ42A-103100	NJ42A-107207	1991	1	17 / 13
	M	NJ42A	NJ42A-103100	NJ42A-107207	1992	1	17 / 13
	M	NJ42A	NJ42A-103100	NJ42A-107207	1993	1	17 / 13
	R	NJ42A	NJ42A-107208	-	1994	1	17 / 13
	R	NJ42A	NJ42A-107208	-	1995	1	17 / 13
	T	NJ42A	NJ42A-109657	-	1996	1	17 / 13
	T	NJ42A	NJ42A-109657	-	1997	1	17 / 13
	W	NJ42A	NJ42A-110966	NJ42A-111515	1998	1	17 / 13
	X	NJ42A	NJ42A-111516	-	1999	1	17 / 13
	F	NJ42AD	NJ42AD-100705	NJ42AD-101614	1985	1	17 / 13
	F	NJ42AD	NJ42AD-100705	NJ42AD-101614	1986	1	17 / 13
	F	NJ42AD	NJ42AD-100705	NJ42AD-101614	1987	1	17 / 13
	J	NJ42AD	NJ42AD-101615	-	1988	1	17 / 13
	J	NJ42AD	NJ42AD-101615	-	1989	1	17 / 13
	J	NJ42AD	NJ42AD-101615	-	1990	1	17 / 13
GN 400 L Gussrad	T	GN400	GN400-500001	GN400-506770	1980	1	27 / 20
	X	GN400	GN400-506771	-	1981	1	27/17 PS / 20/13 kW
	X	GN400	GN400-506771	-	1982	1	27/17 PS / 20/13 kW
GN 400 Speichenrad	T	GN400	GN400-100001	-	1980	1	27 / 20
GN 400 TD Speichenrad	T	GN400	GN400-100001	GN400-108208	1980	1	27 / 20
	X	GN400	GN400-108209	-	1981	1	27/17 PS / 20/13 kW
	X	GN400	GN400-108209	-	1982	1	27/17 PS / 20/13 kW
GNX 250 E	D	NJ41A	NJ41A-101914	-	1983	1	17 / 13
	D	NJ41A	NJ41A-101914	-	1984	1	17 / 13
	Z	NJ42A	NJ42A-100001	NJ42A-101913	1982	1	17 / 13
GR 650 Gussrad	D	GP51A	GP51A-100001	GP51A-102715	1983	2	50 / 37
	E	GP51A	GP51A-102716	GP51A-103907	1984	2	50 / 37
	F	GP51A	GP51A-103908	-	1985	2	50 / 37
	F	GP51A	GP51A-103908	-	1986	2	50 / 37
	F	GP51A	GP51A-103908	-	1987	2	50 / 37
	F	GP51A	GP51A-103908	-	1988	2	50 / 37
	F	GP51A	GP51A-103908	-	1989	2	50 / 37
GR 650 X Speichenrad	D	GP51A	GP51A-100001	GP51A-102715	1983	2	50 / 37
	E	GP51A	GP51A-102716	GP51A-103907	1984	2	50 / 37
	F	GP51A	GP51A-103908	-	1985	2	50 / 37
	F	GP51A	GP51A-103908	-	1986	2	50 / 37
	F	GP51A	GP51A-103908	-	1987	2	50 / 37
	F	GP51A	GP51A-103908	-	1988	2	50 / 37
	F	GP51A	GP51A-103908	-	1989	2	50 / 37

Angaben zur Produktsicherheit

Herstellerinformationen:

Götz GmbH
Steinbeisstr. 7
Baden-Württemberg
Gammertingen, Deutschland, 72501
service@motorsportgoetz.com
https://www.motorsportgoetz.com

Produkteigenschaft	Wert
Hubraum:	125 250 350 400 650 750 800
Kraftrad:	Suzuki
Kraftradtyp:	Motorrad, Enduro, Moto Cross, Supermoto
Modell:	GNX Burgman Executive Z Big GR R L DL Euro X ABS RS SH SE V-STROM DR GN S ZA AN
Versandgewicht:	0,80 kg
Artikelgewicht:	0,66 kg
